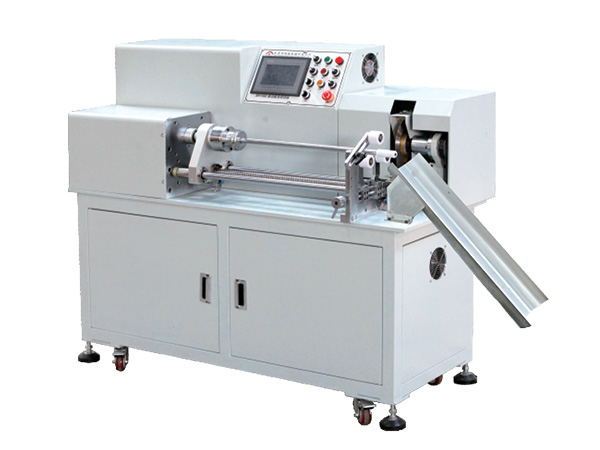

SHY600 多功能全自动切台

SHY600 Multi function automatic paper cutting machine


该机是切纸管和切烫金膜专用设备,同时可以针对PVC软管、以及相对规格的卷筒膜类(如 冷裱膜、预涂膜等等)、BOPP胶带,PVC胶带.美纹纸胶带.双面胶带,保护膜之类进行切割。 多功能全自动切台,主要应用于印刷、包装等行业。

This machine is a special equipment for cutting paper tube and bronzing film. It can also cut PVC hose, roll film (such as cold laminating film, pre coating film, etc.), BOPP tape, PVC tape, masking tape, double-sided tape and protective film. Multi function automatic cutting table, mainly used in printing, packaging and other industries.

性能特点:

1、 彩色触摸屏人性化设计,操作方便;

2、电路采用PLC编程控制,性能稳定;

3、全自动操作生产,故障自动诊断并预警,避免损坏机器;

4、采用全饲服系统控制,高精度滚珠丝杆传动,切割精度可精确到0.2MM.

FEATURES OF PERFORMANCE

Humanized design of color touch screen, easy to operate; 2. PLC programmable control circuit with stable performance; 3. Automatic operation and production, automatic fault diagnosis and early warning, to avoid damage to the machine; 4. Full servo system control, high-precision ball screw drive, cutting accuracy can be accurate to 0.2mm.

2.主要规格及技术参数:

Main specifications and technical reference

品名: SHY600 多功能全自动切台
Name: SHY600 Multi function automatic paper cutting machine
型号 Model SHY600
纸轴最长距离
Maximum distance of paper shaft
600mm
切纸管最窄距离
Narrowest distance of paper cutting tube
5mm
最大光膜直径
Maximum film diameter
Ø150mm(约400米/卷)
最大烫金膜直径
Maximum bronzing film diameter
Ø120mm
适用纸筒直径
Applicable cylinder diameter
1寸、1.5寸、3寸纸管(可定制)
适用纸管臂厚:
Applicable paper tube arm thickness:
2-15mm
控制方式:
Control mode
自动伺服控制/Automatic feeding control
电压及功率:
Voltage and Power
220V/15A
总功率:
Total power
3KW
外形尺寸:
Overall Dimension
1530mm(长)×630mm (宽)×1280mm(高)
机器重量 Weight 约300KG

备注:纸管直径可根据客户需求定做。

Note: The diameter of the paper tube can be customized according to customer requirements.
